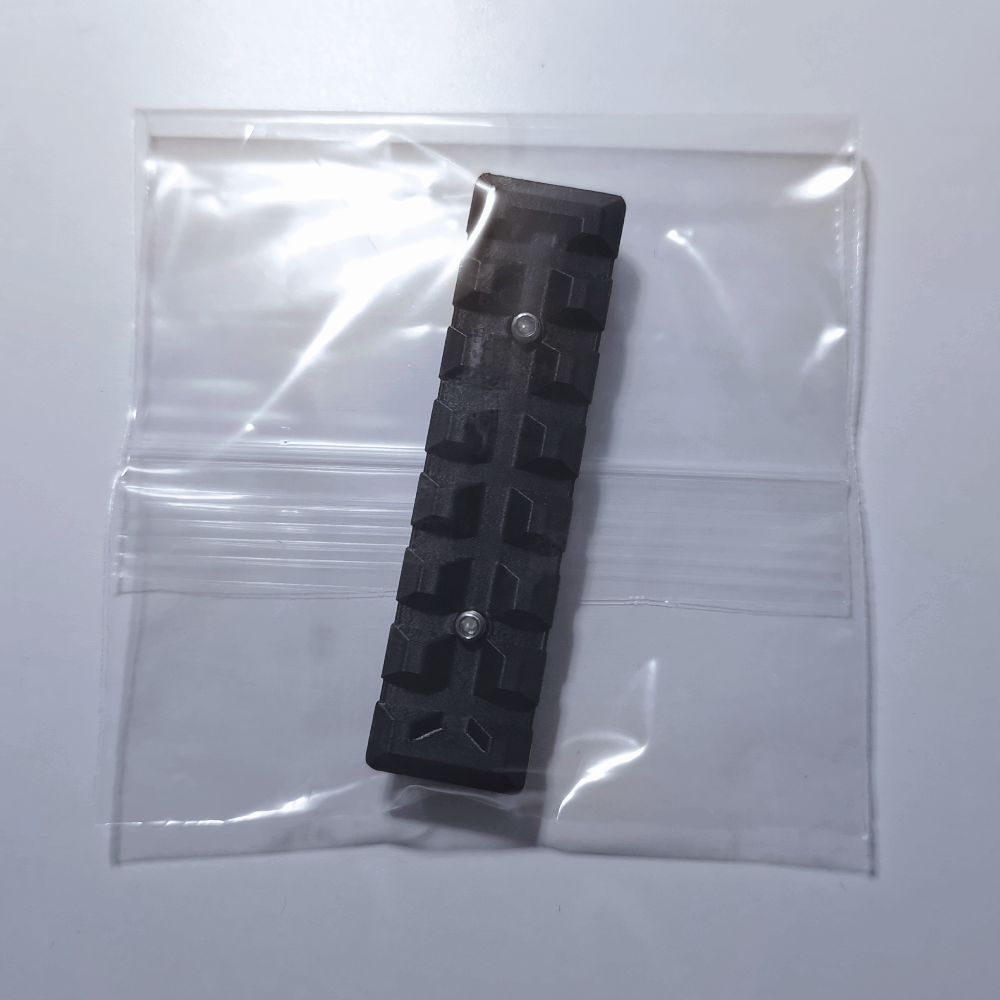

Umarex T4E TP50 Compact Picatinny Comfort Rail 1x 80mm
The factory 11 mm dovetail rail on the Umarex T4E TP50 Compact limits your choice of optics and can make accurate aiming more difficult with the standard iron sights. This 80 mm standalone Picatinny rail provides a solid mounting platform for red dot sights and other accessories, making it easier to improve your sight picture and overall shooting experience.
With rounded corners on both ends for a clean, low-profile appearance, the rail is designed for a precise fit while maintaining a sleek factory-like look. It provides a stable mounting surface for reliable optic installation and includes the necessary hardware for secure attachment.
With rounded corners on both ends for a clean, low-profile appearance, the rail is designed for a precise fit while maintaining a sleek factory-like look. It provides a stable mounting surface for reliable optic installation and includes the necessary hardware for secure attachment.
€9,95
ADD TO CART
ClassificationRails
Color-SpecBlack
Core-MatPETG-HF and Stainless steel
Platform-FitUmarex T4E HDP/TP50 Compact Gen1, Gen2
Form-Dim80 × 20 × 11 mm (L×W×H)
HS-ID#9506999000
REV_
Reviews
Loading reviews…
×
❮
![Lightbox Image]()
❯
REL_
Related Gear
COMP_
Compatibility
Rail system scan ////
01 / confirmed
Umarex T4E HDP/TP50 Compact Gen1
02 / confirmed
Umarex T4E HDP/TP50 Compact Gen2
03 / error
Umarex T4E HDP/TP50 Gen1
04 / error
Umarex T4E HDP/TP50 Gen2
INSTALL_SEQ
Installation
01
Alignment
Slide the Picatinny rail base onto the 11mm stock rail of your HDP/TP50 Compact, positioning it at your desired mounting point.
02
Secure Lock
Once aligned, tighten the integrated set screws using a hex key to lock the rail firmly in place, ensuring it is no longer a friction-only fit. Avoid over-tightening to prevent damage to the rail and the HDP/TP50 body.
03
Shim Placement
If necessary, insert the appropriate shim from the provided set between the base and the stock rail to ensure your accessories are centered.
04
Verification
Confirm that the rail is fully immobilized on the stock rail; once locked, mount your accessory and tighten it to the rail according to the manufacturer’s specifications.
MAT_SPEC
Why PETG-HF
Material Reliability
PETG-HF offers an excellent balance between rigidity and flexibility, ensuring the rail maintains its precise shape under the heat or clamping pressure, providing excellent UV and weather resistance.
Impact Resilience
This material is built to take a beating. It’s incredibly impact-resistant, soaking up vibrations and recoil from your HDP/TP50 Compact so the rail stays rock-solid. You don’t have to worry about it getting brittle or cracking over time.
Dimensional Accuracy
The “High-Flow” part of the name means the material flows very consistently through the printer nozzle. This results in cleaner, sharper edges on the Picatinny slots. You want those grooves to be crisp so your accessories lock in with zero “wobble”.
WARR_
Warranty
Limited Lifetime Warranty Protection
All 3D-printed parts come with a limited lifetime warranty under normal use. If a component ever fails during regular operation, simply contact us and we will ship a replacement. Please review our full Terms & Conditions or FAQ page for ordering details and product guidelines.
